| 1 |
Automatic Evaluation of Following parameters as per DIN 3960
• fp - Pitch deviation
• Fp - Cumulative pitch error
• fu - Adjacent Pitch error
• FR- PCD Runout error |
2
Automatic detection of DIN Grade of measured job data.
3
User configurable Tolerances
4 Provision of achieve / recall of standard and history data
5 Generation of multicolor scaled reports in Graphical format. |
| |
|
| |

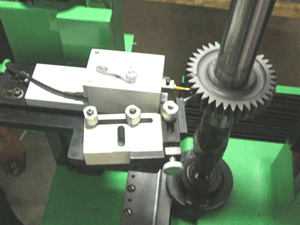

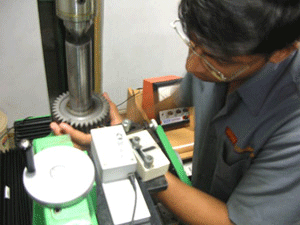

iii) Gear MAS™ III for Computerised Gear Roll Tester |
| |
GEAR MAS™ III is a state of Art PC-Based Measurement and Analysis system for Gear Roll Testers of various makes such as Carl Mahr, Goulder Mikron, Osaka, Klingelnberg or any other make. |
1 Evaluation of following parameters as per DIN 3963.
• fi" - Double Flank Tooth to Tooth error
• Fi" - Double Flank Rotational Deviation (Total Composite error)
• Fr - Runout error / Eccentricity error.
• Aa - Average center Distance. |
2
Automatic detection of DIN Grade of measured job data.
3 Provision of achieve / recall of standard and history data.
4 Generation of multicolor scaled reports in Graphical format.
5 Linear & Polar representation of graph |
| |
|
| |
|
| |
|
